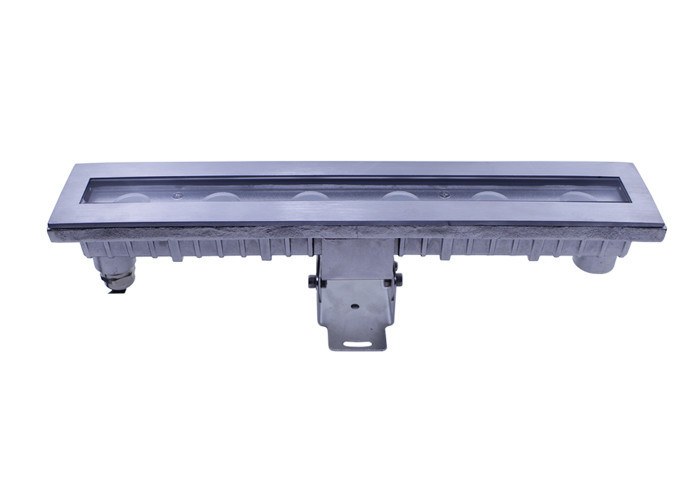

Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512

Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512

  • Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512
  • Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512
  • Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512
Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512
Product Details:
Place of Origin: DongGuan
Brand Name: Inhooper
Certification: CE & RoHS
Model Number: IH-SD-C6Z
Payment & Shipping Terms:
Minimum Order Quantity: 4PCS/Box
Price: Negotiable
Packaging Details: Your brand packing, white box and etc
Delivery Time: 10-15 working days after payment received
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2500 pieces per month
Contact Now
Detailed Product Description
Product Name: Linear Wall Washer LED Light Source: 6*3W CREE
Dimension: L290*W53 Material: 316 Stainless Steel + Tempered Glass
Emitting Colors: RGB/White/Red/Green Etc. Voltage: 12VDC Or 24VDC
Warrranty: 3 Years CRI: ≥80
LED Brand: CREE LED Underwater Light Color Control: DMX Addressable, RF Remote Control, WiFi
High Light:

underwater led pond lights

,

led underwater pool lights



IP68 DMX512 Linear Wall Washer spot LED RGB Underwater Fountain Light



  • Housing: Hard chromeplated molding shaped stainless steel sus 316#
  • Front cover: Hard chromeplated Stainless steel sus 316#
  • Light Window: Step tempered glass. T=8mm
  • Lens: Separate optical lens efficiency≥85%
  • Cable gland: IP-68 M16a copper with nickel-coated
  • PCB: Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
  • Seal: Molding shaped silicon seal under the front cover Silicon glue among LED, lens and PCB
  • Power cable: H07RN-F 4X0.75mm2 L=3.0m
  • Application environment: Temperature of water between -20℃~ 40℃less than 1 meter depth.







Product details


Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512 0

Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512 1





Specifications






Linear Wall Washer



Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512 2



Name



 Underwater Spot light



Rated voltage



 DC12V/24V



Material
 316 satainless steel marine grade



Light color
 Single color, RGB, RGBW



Installation
 embedded / recessed/ Buried



Temperature
 3000K/ 6000K



Diameter



 L328*W63.5




Dimension


  • The dimeter of front cover can be increase to yout requirements.
  • Different beam angle for optional: 10Degree, 30Degree,45degree,60 degree etc.

Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512 3





Applications


Underwater wall wash spot light can be used for any unwater environment. For example: Pond, Swimming pool, Home mini fountain, waterfall, fountain etc.



The fitting material for commercial pool lights should be stainless steel 316 or for higher salt concentrations or warm salt water higher alloyed steel 316 and also electro polished to further enhance the corrosion resistance. Contrary to popular belief stainless steel can in fact stain and discolour, in particular when incorrectly treated and finished.The same is true for the installation housing and all other fitting parts e. g. cable glands which also should be made from the appropriate stainless steel.



The fittings in commercial pool applications should be recessed to avoid that they can be used as steps.

Linear Wall Washer Spot LED RGB Underwater Fountain Lights 18W IP68 DMX512 4
